Denon, DN-300ZB.

Ideal for audio playback in a myriad of demanding applications, including Background Music (BGM), Fitness and Aerobics, DJ and Broadcast.

 DN-300ZB, Overview.

Combining the best of disc, wireless, and solid-state media playback, the Denon Professional DN-300Z is an all-in-one audio player you can count on when the whole room is listening. Ideal for front-of-house, education, music and rehearsal studios, houses of worship, restaurants and more, it has an answer to every request—all consolidated into a compact 1RU design. Extending Denon Professional’s dedication to powerful solutions that are easy-to-use, the DN-300Z plays the media of both today and tomorrow, in formats easily accessible to any user.

It really does expect the unexpected. Go ahead, throw anything you want at it: Front-loading media slots (CD w/single-play mode, USB, SD/SDHC) deliver intuitive playback of today’s familiar mass-storage mediums. Or, go wireless with long-range Bluetooth audio connectivity (up to 100 feet) and instant recall of up to 8 devices such as smartphones and tablets. With support for CD-DA, MP3, WAV, and AAC file formats, the DN-300Z is the master-of-all-trades player that excels when the unpredictable occurs. The 300Z features both RCA audio outputs and balanced XLR outputs. The balanced outputs are a much-needed feature in the professional/commercial sector, since they enable long connection cable runs without any increase in stray noise pickup.

The front panel’s backlit LCD screen provides at-a-glance status of playback modes and content, providing clear readouts to even the most novice user. Designed to adapt to any scenario, switching formats on the fly has never been easier. Media categories and their respective controls are grouped together so users will never have to wrestle with deep menus or use the instruction manual to perform basic functions. Direct access to CD tracks, global transport controls (play/pause/search), and a rotary-push encoder translate to fast, hands-on command when you need to get to your content.

An IEC-weighted AC power port means space-saving connection to power sources—no bulky transformers or “wall warts” required. When installed into a client’s rack, the DN-300Z provides the capability, reliability, and versatility to tackle any playback task, from one-off requests to rehearsed program material, in an intuitive, tidy package.

The DN-300ZB media player expects the unexpected. But you demand it.


DN-300ZB, Feature List.

  • Super-fast loading, slot-in CD player
  • Supports removable USB thumb and HDDs, SD/SDHC cards
  • Wireless audio playback from tablets and smartphones via Bluetooth
  • Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
  • Up to 100 foot (30m) wireless Bluetooth range
  • Plays CD-DA, MP3, WAV, and AAC files
  • 3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
  • AM/FM Tuner w/ dedicated audio out for multi-room use
  • RCA and balanced XLR audio outputs
  • 10-key direct track access
  • Random, repeat, and single play playback modes
  • Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
  • Folder only and All play modes
  • Lockable front-panel keeps program material from being interrupted
  • IR controllable with included, compact remote
  • 1RU chassis with removable rack ears
  • Detachable IEC-weighted AC inlet
  • 100-220v switching power supply

DN-300ZB, Specification.

Playable formats, file systems:


USB: FAT16 / FAT32


Supported WAV format:

Extension: WAV

Bitrate: 16–bit

Samplig Frequency: 44.1 kHz

Supported AAC format:

Extension: M4A

Compression method: AAC-LA

Bitrate: 32 to 320 kbps and VBR

Sampling Frequency: 44.1 kHz

Supported MP3 format:

Extension: MP3

Bitrate: 32 to 320 kbps and VBR

Sampling Frequency: 44.1 kHz

Number of channels: 2 (stereo), 1 (mono)

Audio frequency characteristics: 20 Hz – 20 kHz (± 1.0dB)

S/N ratio: More than 95 dB (A-Weighted)

Total harmonic distortion: Less than 0.01%

Dynamic Range: More than 85 dB

Channel Separation: More than 80 dB


Version 3.0

Output Class 2

Range: Up to 100 feet (30m) with included antenna

Supported Codec: SBC, MP3, AAC, aptX

Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP

Device memory: Recall up to 8 pairings instantly


Aux in: TRS (3.5mm)

Input impedance: Over 10kΩ

Maximum input level: 1 Vrms

Maximum output level: 3 Vrms


Analougue RCA terminals:

Load impedance: Over 10kΩ

Output level: 2 Vrms at 10kΩ load

Balanced XLR

Output Level: +8 dBu

Load impedance: > 10kΩ


Tuner (EU and Asia Pacific)

FM receiving range: 87.5 MHz – 108.0 MHz

AM receiving range: 522 kHz – 1611 kHz

Useable Sensitivity (FM): 30 dBuV/m

Useable Sensitivity (AM): 60 dBuV/m

Tuner channel separation: 20 dB (0 kHz)

Tuner S/N ratio (FM): > 40 dB

Tuner S/N ratio (AM): > 30 dB

THD+N (1 kHz): 3.0%

Operating Environment:

Operating temperature: 5-35 degrees Celcius (41-95 degrees Fahrenheit)

Operating humidity: 25-85%, no condensation

Power Supply:

USA & Canada: AC 120V, 60 Hz

EU, UK, APAC: AC 230V, 50/60 Hz

Japan: AC 100V, 50/60 Hz

Power consumption: 30W

Dimensions: 19” x 13.7” x 1.73” (483 x 347 x 44mm) with rack ears

Weight: 7.94 lbs. / 3.6 kg


Max storage capacity: Up to 2TB

Max file size: 2 GB

Max number of files per folder: 999

Max number of folders: 999

Max folder heirarchies: 8

Max file/folder name length: 255 characters

Denon 300ZB, Images.


DN-350ZB Front Panel

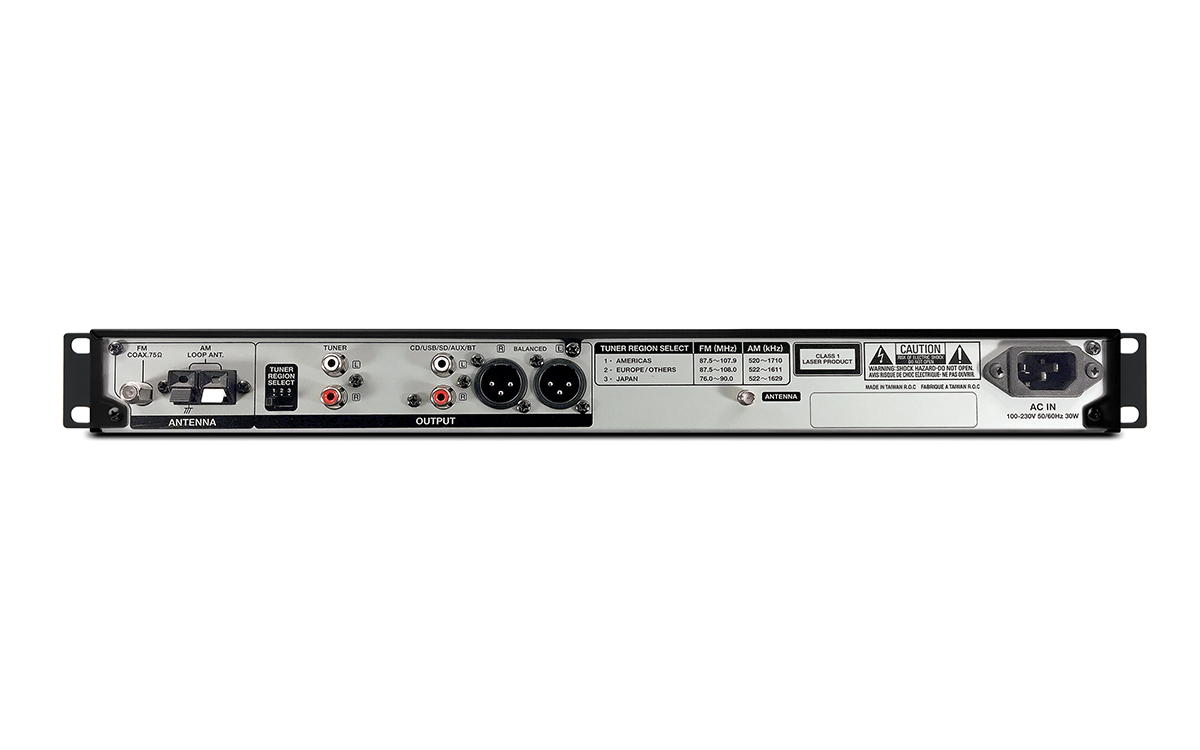

DN-300ZB Rear Panel

Remote Control

Remote Control RC-1200

Bluetooth Antenna

Bluetooth Antenna
